PixelCore

144 individually addressable RGB LEDs in a compact, pinball-friendly package.

PixelCore is a high-density 12x12 RGB LED matrix designed for pinball mods, lighting effects, and animated displays where space is limited. With 144 individually controlled pixels, PixelCore can create much more detailed effects than traditional LED rings, light bars, or lower-resolution matrices.

PixelCore uses a simple 5V, Data, Ground connection and is designed to work with Coming2U controllers as well as compatible custom projects.

144 Pixels. Tiny Footprint.

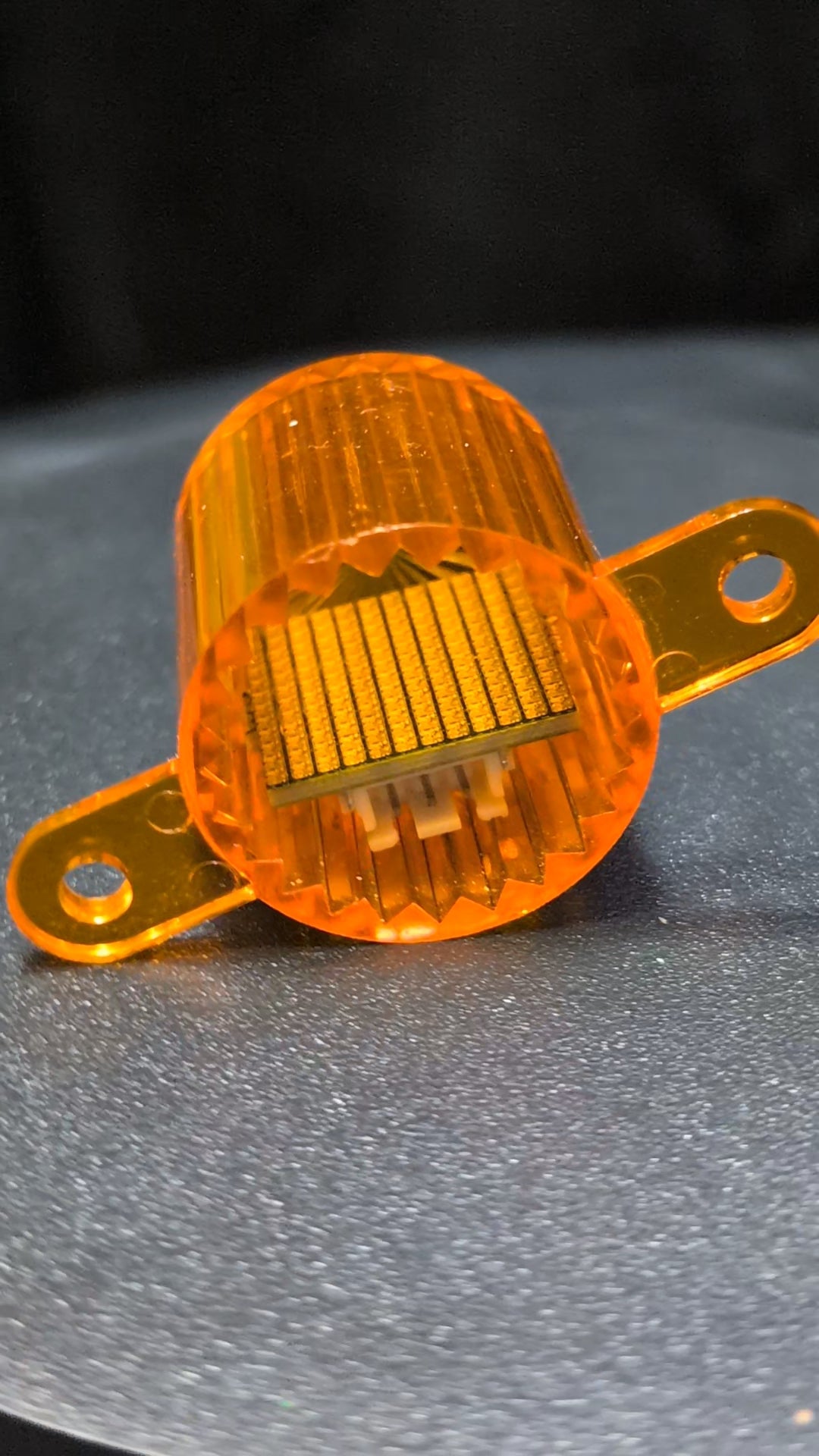

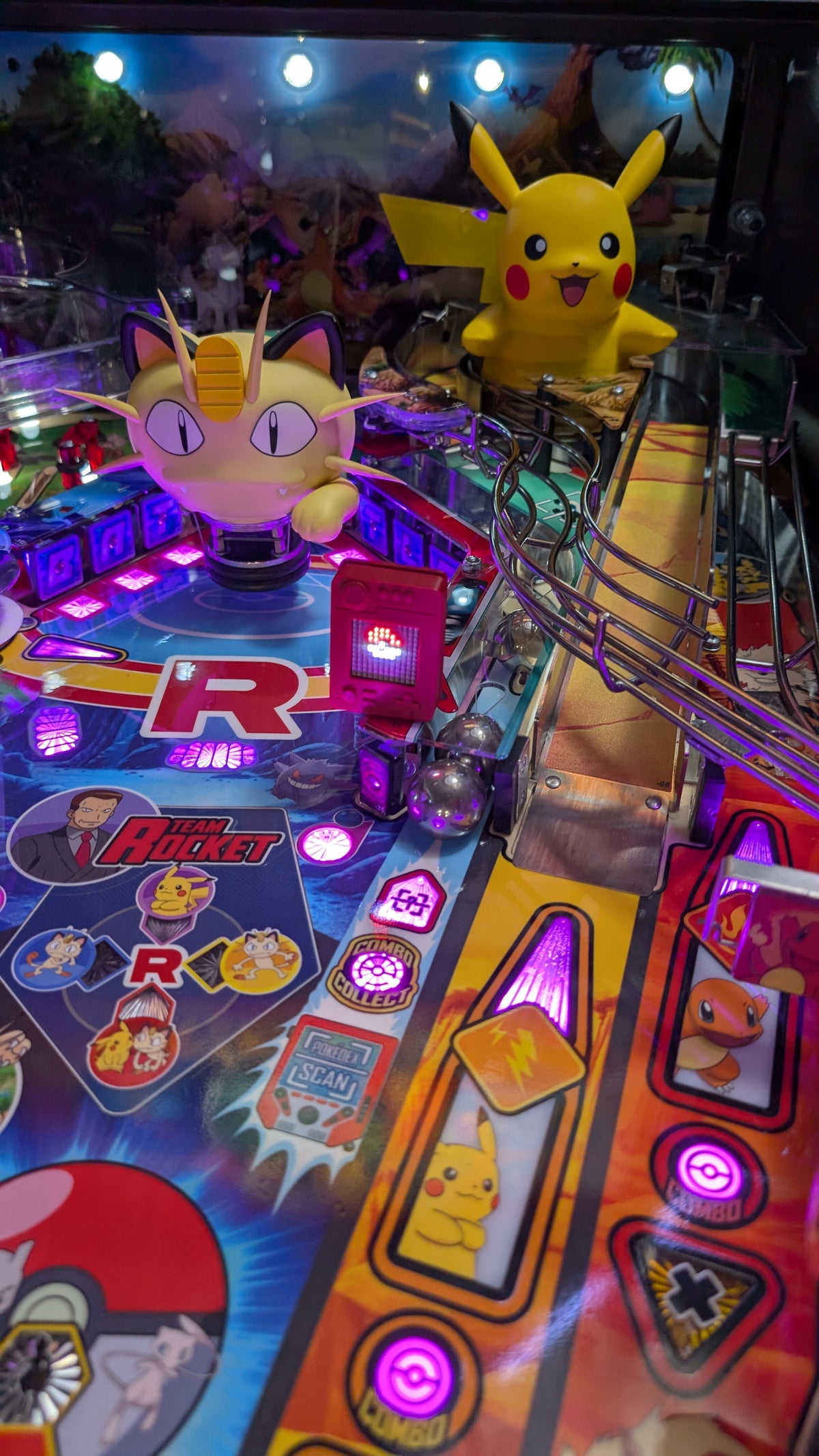

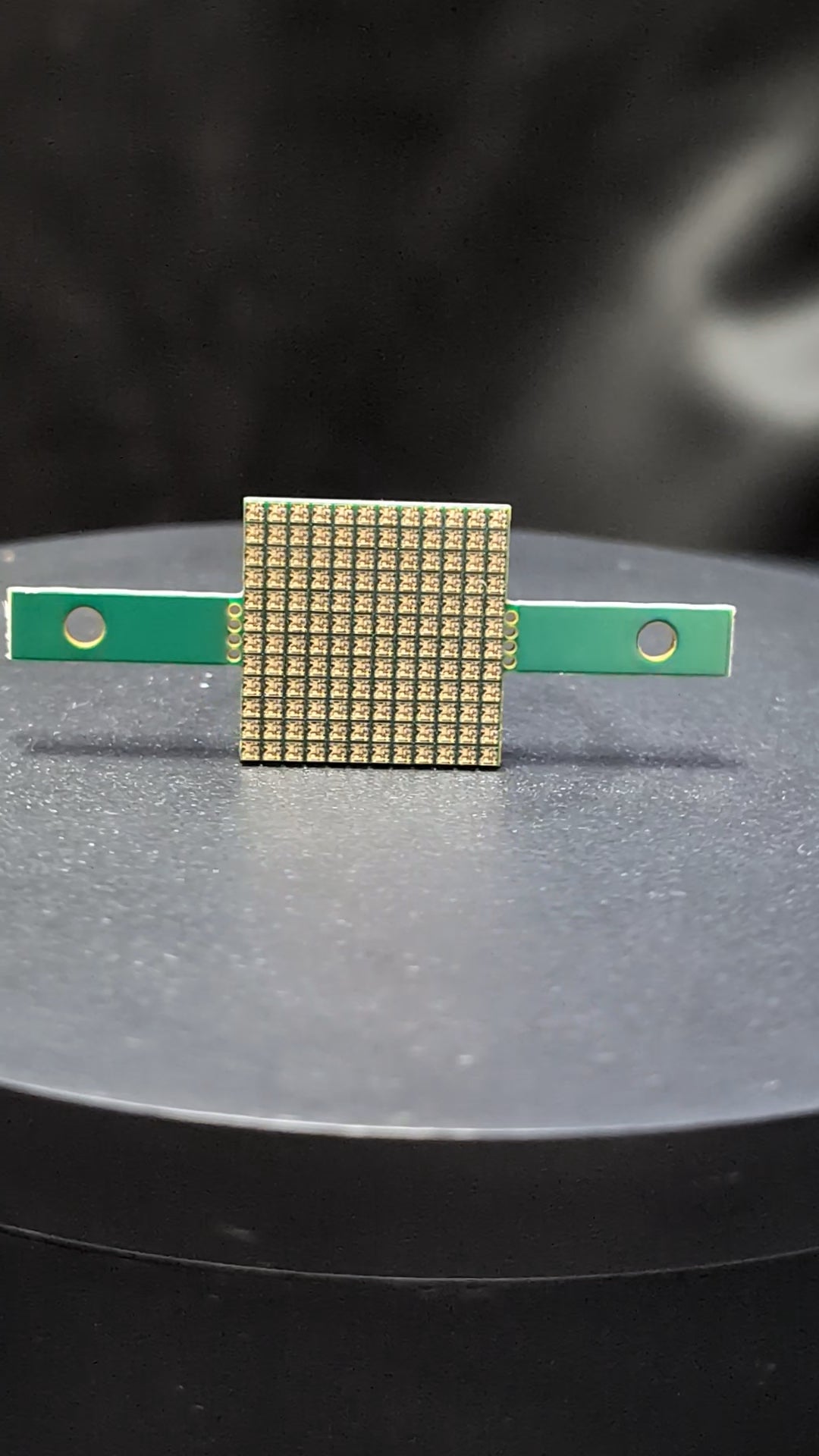

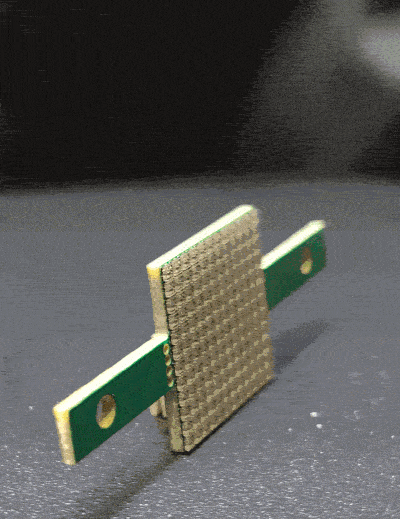

The 12x12 matrix packs 144 RGB pixels into an illuminated area of approximately 21mm x 21mm. The PCB was designed around the footprint of a traditional pinball flasher assembly, making it especially useful for animated lighting effects inside flasher domes and other compact areas of a pinball machine.

144 RGB LEDs
12x12 individually addressable matrix
Approximately 21mm x 21mm illuminated area
5V operation
3-wire connection: 5V / Data / Ground
Rear JST-XH connection
Designed for compact pinball installations
Supports animations, flashes, patterns, graphics, and reactive lighting
Can be daisy-chained to create an even larger matrix

More Than a Flasher

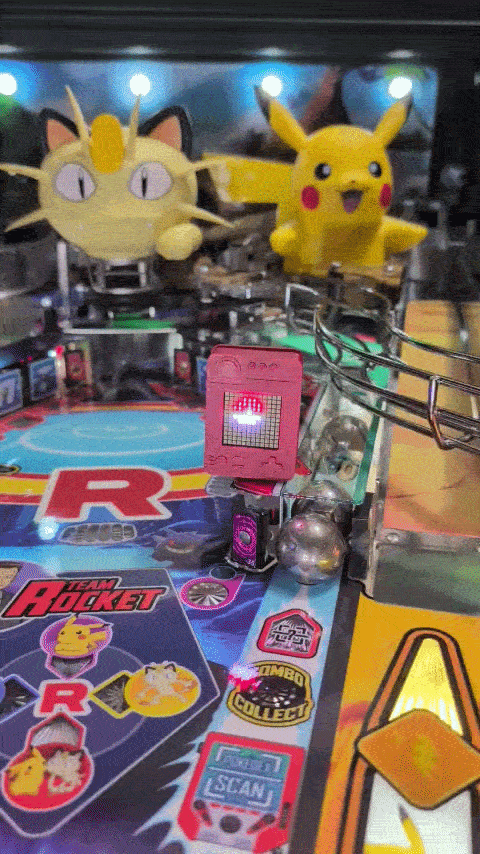

PixelCore can be used as a traditional high-output lighting effect, but every LED can also be controlled independently. That makes it possible to create scrolling patterns, directional effects, explosions, spinning graphics, color transitions, low-resolution images, and game-reactive animations from the same compact board.

Made for Mod Builders

PixelCore is not limited to a single Coming2U mod. It is part of the Coming2U electronics library and can be used as a reusable lighting platform for future mods, custom builds, toppers, flasher replacements, interactive sculpts, and DIY projects.

Standalone PixelCore boards are also available for other mod makers and developers who want a compact, high-density RGB matrix without designing and manufacturing a custom LED PCB.

The simple 5V / Data / Ground interface makes PixelCore easy to integrate into ESP32, Raspberry Pi, and other compatible addressable LED projects.

Purchase Options

PixelCore Starter Kit

2x PixelCore boards + C2U ESP32 Controller

A complete starting point for standalone PixelCore projects. Includes an ESP32-based controller for running animations, lighting effects, sensors, and other custom mod functions.

PixelCore Pulse Kit

2x PixelCore boards + C2U Pulse Controller

For PixelCore installations that integrate with the C2U Pulse ecosystem, allowing lighting effects and animations to react to supported pinball game events.

PixelCore Module

1x PixelCore board, no controller

For customers and builders who already have a compatible controller and only need the PixelCore hardware.

PixelCore Modder Pack

5x PixelCore boards, no controller

A multi-board option intended for mod makers, developers, prototype builders, and small-batch production.

Native Mod Compatibility

PixelCore can be used as a general-purpose RGB matrix, while selected Coming2U mods include native PixelCore support with preconfigured animations and mounting options.
